Building Your Own Porch Swing: A Step-by-Step Guide

Imagine sipping sweet tea on a breezy afternoon, gently swaying on a beautiful porch swing you built with your own two hands. Sounds dreamy, right? Well, guess what — building your own porch swing is way easier (and way more satisfying) than you might think.

Today, I’m walking you through every step you need to turn a few pieces of lumber into your favorite new spot to relax.

Trust me, even if you’re not a woodworking pro, you can absolutely do this — no specialty tools needed.

What You Might Need

• Two-by-fours (2×4) – 5 standard 8-foot 2x4s – buy one extra for mistakes
  • 2 pieces at 45 inches (long sides of seat frame)
  • 4 pieces at 19 inches (cross pieces of seat frame)
  • 4 pieces at 23½ inches (back supports)
  • 2 pieces at 14 inches (front armrest pieces)
  • 2 pieces at 26 inches (main armrest pieces)
• One-by-fours (1×4) or rip down one-by-eights (1×8)
  • 5 standard 8-foot one-by-fours
  • 4 pieces at 48 inches (back slats)
  • 5 pieces at 45 inches (seat slats)
  • (Alternative: 3 eight-foot 1×8 boards to rip down into 1×4s)
• 3-inch exterior screws – 1 box of 50 screws
• Wood glue
• 5/16″ x 4″ hook screws (4)
• Porch swing kit with chains or rope
• Finishing supplies (paint, stain, or sealer)
• Circular saw, miter saw, or table saw
• Drill and bits
• Jigsaw
• Measuring tape
• Pencil
• Clamps
• 60-grit sandpaper
• (Optional) Finishing nailer
• (Optional) Router with ¼-inch round-over bit
• (Optional) Paint can or something round for tracing curves

Step 1: Build the Seat Frame

Start by cutting two 2×4s at 45 inches long for the sides of your seat. Then, cut four 2×4s at 19 inches for the crosspieces.

Lay the two long boards parallel and attach the 19-inch boards between them — one at each end and two spaced evenly across the middle. (Quick tip: center the middle boards about 15⅜ inches from each side for even support)

Use wood glue and 3-inch exterior screws to lock everything into place. You’ve officially started your swing.

Step 2: Build the Back Supports

Now cut four 2×4s to 23½ inches each. To create a comfy tilt for the backrest, you’ll need a little DIY magic:

• Measure and mark 2¼ inches from the right side and 3 inches from the bottom on each board.
• Use a scrap 2×4 to draw a diagonal line connecting these points.
• Cut along the line on two boards, and flip the measurements for the other two so they mirror each other.

Sand the pieces smooth, then attach the two middle supports to the center of the seat frame and the two outside supports to the edges.

Step 3: Build the Armrests

Ready to give your swing a little flair? Cut two 2×4s at 14 inches for the front pieces and two more at 26 inches for the actual armrests.

To add that lovely hand-shaped curve:

• Draw a line 1 inch from the front edge underneath.
• On the back edge, mark 1½ inches from one side and 2 inches from the very back.
• Sketch a small rectangle between those points and cut it out with a jigsaw.
• Trace a gentle curve on the front using a paint can as your guide and cut it out.

After sanding the armrests smooth (and optionally routing the edges), attach them to the frame, aligning the 1-inch mark to the front. Make sure everything is squared up and secure.

Step 4: Assemble the Back

Time to build the back slats. Cut four 1×4s at 48 inches each (or rip down wider boards if needed).

On the slat that’ll sit right above the armrests, cut small rectangles out of the bottom corners (1½ inches x ¾ inch) so it fits snugly.

Use wood glue and finishing nails to attach all the slats across the back supports, spacing them about 2¼ inches apart.

Step 5: Make the Seat Top

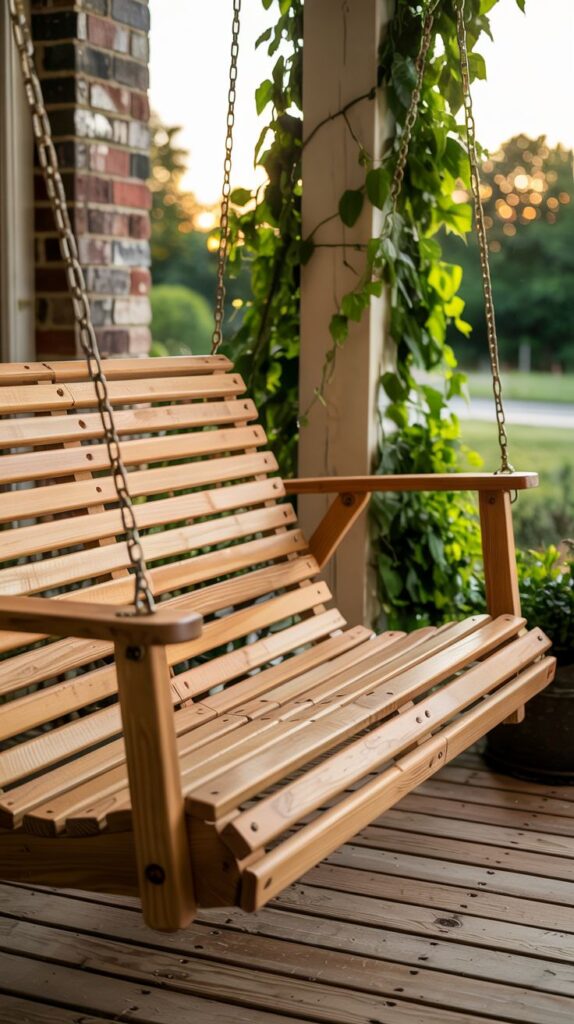

For the seat itself, cut five 1×4s at 45 inches each. Space them out with about a ½-inch gap between each board for comfy airflow and drainage.

Glue and nail them into place — you’re getting so close.

Step 6: Finish and Hang

Now for the fun part:

• Sand the entire swing nice and smooth.
• Apply your favorite paint, stain, or sealer.
• Pre-drill holes for your 5/16 x 4-inch hook screws about 2 inches from the bottom of the frame.
• Install the hook screws into your porch ceiling using your swing kit hardware.

Double-check that your swing can move freely without bumping the armrests — and you’re done.

Total Project Time: Around 3 hours (yes, you could finish this in one afternoon).

Picture This

You’re stretched out on your handmade porch swing, a cozy throw over your lap, a cold drink sweating gently beside you. The afternoon sun filters through the trees as your swing moves in a slow, dreamy rhythm.

And the best part? Every relaxing sway reminds you: you built this.

With a few simple tools and a little bit of love, you created your own personal slice of backyard bliss.
